Mount 9.4 (19)

Name: Mount 9.4 (19)
Brand: NDM Shop
SKU: 4KOE23070
Price: 2968.56 EUR
Availability: OutOfStock

NDM Shop

€2,968.56*

Prices incl. VAT plus shipping costs

Rahmengröße

Product number: 4KOE23070

AKU Grand 2.3/2.4//Tour 5.3/5.4//City 5.4 13 Ah

Capacity;13 Ah (468 Wh) Max. range: 100 km Product weight: 3.5 kg Package dimensions: 20x50x20cm

€798.00*

Product information "Mount 9.4 (19)"

Premium all-carbon model of mountain e-bike for demanding users. This is a machine suitable even for the most difficult terrain, where thanks to the first-class components it feels like a fish in water.
We offer the e-bike in frame sizes 19" and 21", and it is a classic 29er with a frame made of light but strong Carbon UDG material.
The most powerful central motor on the market: the Bafang M510 with a torque of 95 Nm and a maximum power of 750 W provides first-class support even in the most difficult outings. Thanks to the extremely sensitive torsion sensor, the motor excels with its smooth operation in every level of assistance (a total of 5 to choose from).
The level of motor assistance is regulated using the + and - buttons located on the handlebars, all driving information is displayed on the color LCD display. It also shows the current motor aids.
Quality components will support you not only when riding off-road: Shimano Deore derailleur (11 speeds), SR Suntour X1 Boost air fork with 120 mm travel, Tektro 4-piston hydraulic disc brakes or Maxxis tires.

Material frame/frame; carbon UDG

Frame/Frame;19"

Wheel/wheels;29"

Recommended Battery / Recommended Battery;Li-ion 36V/20 Ah (720 Wh) SAMSUNG Cells / Cells

Max. Range / Max. Range: 160 km

Motor; central with pressure sensor BAFANG M510 (250W/max.750W, 95 Nm)

Speed / Speed;With assist. up to 25km/h / With support. up to 25 km/h

Display; Color LCD display, 5 degrees of assistance / assistance levels

Loading capacity / load limit; 120 kg

Weight: 19 kg

Fork / Gabel;SR SUNTOUR X1 BOOST AIR RLO, travel 120 mm, lockable / lockable

Crank arm / pedal arm; BAFANG (38 teeth), crank arm / pedal arm 170mm

Rear derailleur / rear derailleur; SHIMANO Deore RD-M5100

Shifter / shift lever;SHIMANO Deore SL-M5100, 11 Speed

Cassette / sprocket package; SHIMANO CSM5100 11-42.11s

Chain / Chain;KMC e11 Sport

Brakes / Brakes;TEKTRO HD-M535 Gemini SL, 4-piston, hydraulic. Disc brake/disc brake

Front Hub / Front Wheel Hub;NOVATEC D041SB-15-32H

Rear Hub / Rear Wheel Hub;NOVATEC D952TSE-B12-32H

Rims / Rims;ALEX RIMS, 29*1.75*14G*32H

Spokes; SAPIM, reinforced (14G, diameter 2 mm), stainless black

Tires / Tires;MAXXIS FOREKASTER 29*2.35

Pedals / pedals;VELGO Alu, expanded / expanded, ball bearings / ball bearings

Grips / Grips; MTF SportGrip

Handelbars / Handlebars; MTF Sport (760 x 31.8 mm)

Stem / stem;MTF Sport (31.8, lenght / length 60 mm)vvvvvvvvvvvvvvvv

Headset / headset;NECO, semi-integrated / semi-integrated 1 1/8'', black / black

Seatpost / seat post; MTF (31.6 / 400 mm)

Saddle / Saddle; MTF NoPressure Sport

Charger / charger; MTF 36V / 3A

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Customers also viewed

Mount 6.4 (19)

Mountain e-bike with mid-drive motor and 29" wheels suitable for harder terrain and trails. Frame; aluminum 6061 Frame size;19″ Wheel size;29'' Recommended Battery;Li-ion 36V/20 Ah (720 Wh) SAMSUNG Cells / Cells Max. range: 160 km Motor; central with pressure sensor BAFANG M410 (250W/max.500W, 80 Nm) Speed;With assist. up to 25km/h / With support. up to 25 km/h Display; Color LCD display, 5 degrees of assistance / assistance levels Max. load capacity: 120 kg Weight: 19.1 kg Fork;SR SUNTOUR XCM RLO, travel 100 mm, lockable Crank arm; BAFANG (38 teeth), crank arm / pedal arm 170mm Rear Derailleur;SHIMANO Alivio RD-M3100 Shifter;SHIMANO Alivio SL-M3100, 9 Speed Cassette;SHIMANO Alivio/Deore CS-HG400 (11 - 36 Teeth) Chain;KMC X9E Brakes;SHIMANO BR-MT201, hydraulic. Disc brake/disc brake Front hub;NOVATEC D761DSE Rear hub;NOVATEC D762TSE Rims;ALEX RIMS, 36H, 622x21 Spokes;SAPIM, reinforced (14G, diameter 2 mm), stainless black Tires;MAXXIS REKON 29*2.40 Pedals;Alu, expanded, ball bearings Grips;MTF SportGrip Handlebars; MTF Sport (740 x 31.8 mm) Stem;MTF Sport (31.8, lenght / length 60 mm) Head composition;NECO, semi-integrated / semi-integrated 1 1/8'', black / black Seat post; MTF (30.4 / 400 mm) Seat;MTF NoPressure Sport Charger;MTF 36V/3A

€1,543.92*

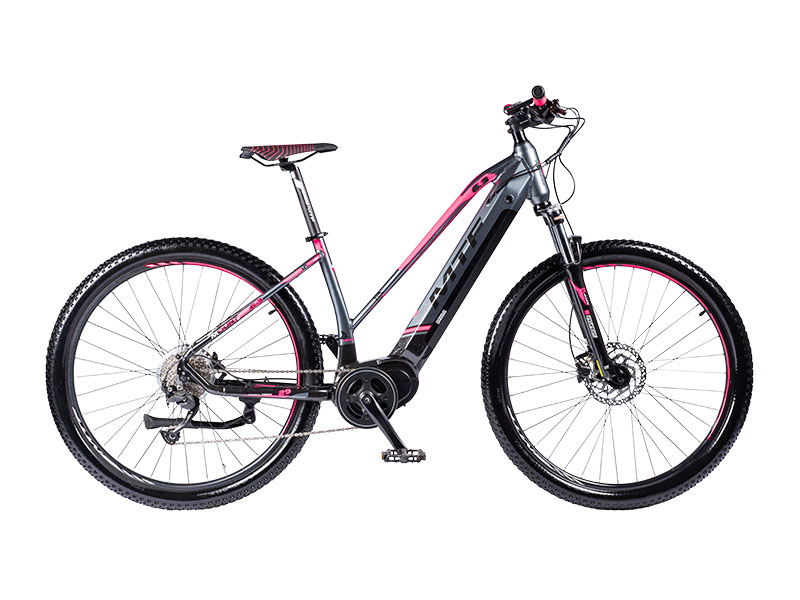

Mount 6.3W (18)

Specifications Item no.;4KOE23037 Frame; aluminum 6061 Frame size;21″ Wheel size;29'' Motor;central with pressure sensor BAFANG M510 (250W/max.600W, 95 Nm) Battery;Li-ion 36V/25 Ah (900 Wh) SAMSUNG Cells Max. range: 200 km Speed: 25 km/h Control;color LCD display, 5 degrees of assistance Max. load capacity: 120 kg Weight: 18.9 kg Fork;SR SUNTOUR XCM RLO, travel 100 mm, lockable Handle; BAFANG (38 teeth), crank arm 170 mm Shift;SHIMANO Alivio SL-M3100, 9 Speed Gear change;SHIMANO Alivio RD-M3100 Cartridge;SHIMANO Alivio/Deore CS-HG400 (11 - 36 Teeth) Chain;KMC X9E Brake;SHIMANO BR-MT201, hydraulic. Disc brakes Front hub;NOVATEC D761DSE Rear hub;NOVATEC D762TSE Rims;ALEX RIMS, 36H, 622x21 Spokes;SAPIM, reinforced (14G, diameter 2 mm), stainless black Tires;MAXXIS REKON 29 x 2.40 Pedals;Alu, expanded, ball bearings Grips;MTF SportGrip Handlebars; MTF Sport (760 x 31.8 mm) Stem;MTF Sport (31.8, length 60 mm) Head composition;NECO, semi-integrated 1 1/8'', black Seat post; MTF (30.4 / 400 mm) Seat;MTF NoPressure Sport Charger;MTF 36V/3A Product weight: 18.9 kg Package dimensions: 80x30x160cm

€1,620.84*

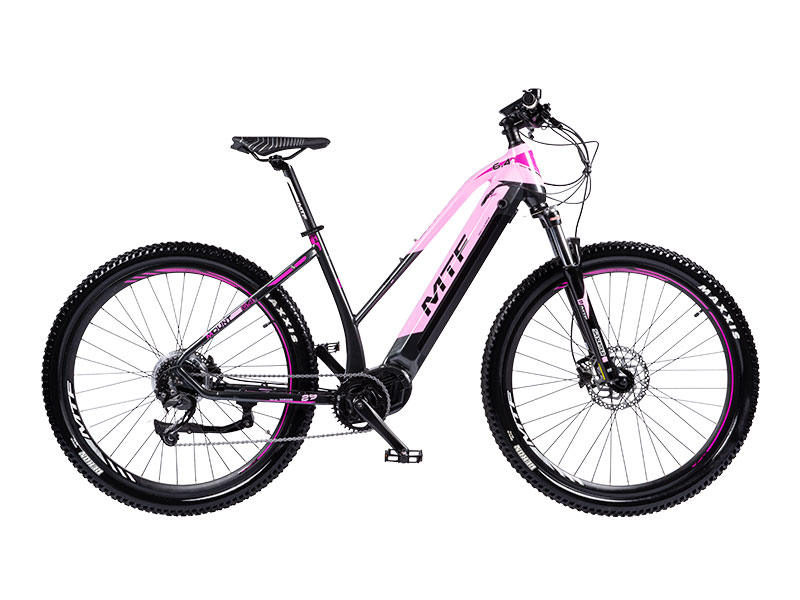

Mount 6.4W (17)
